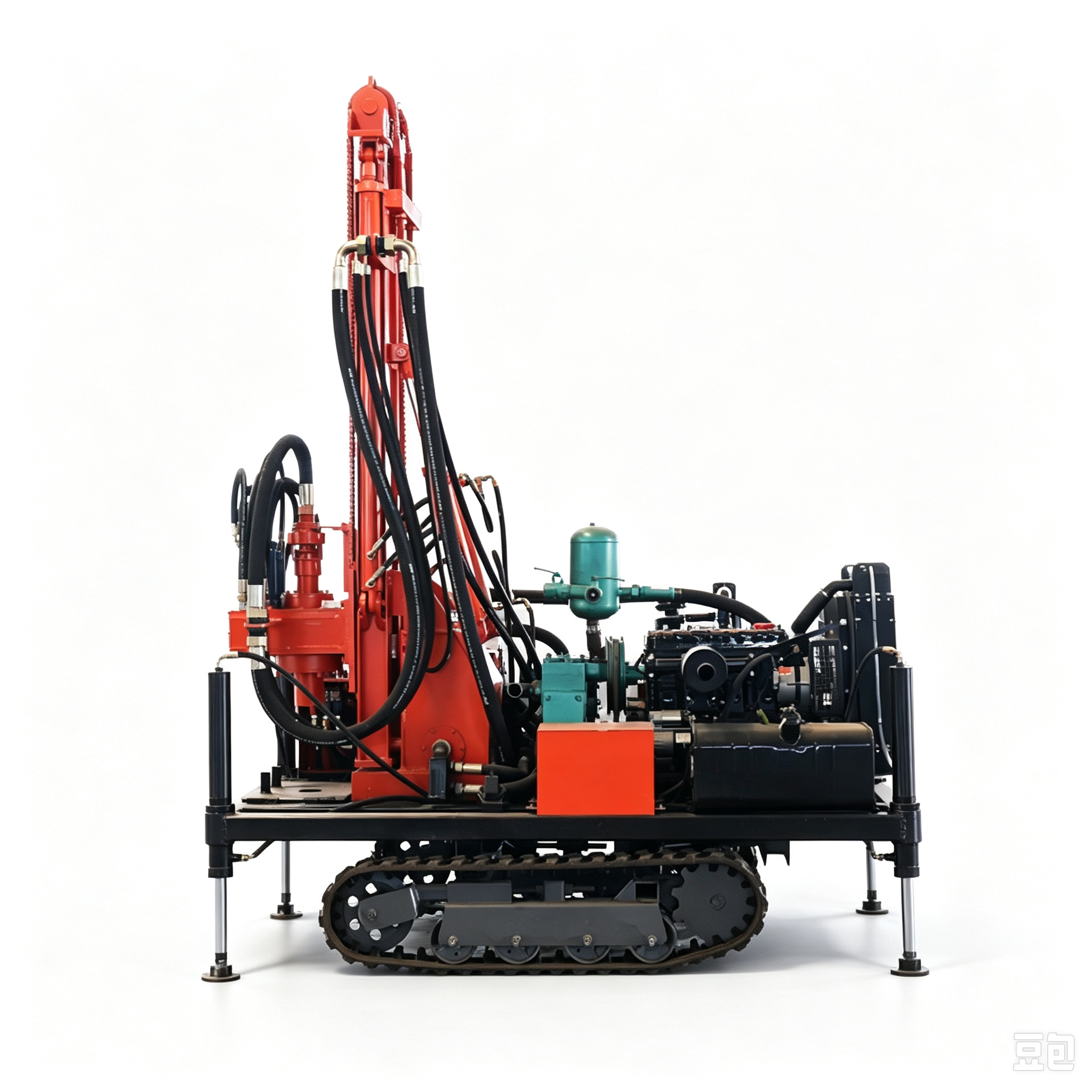

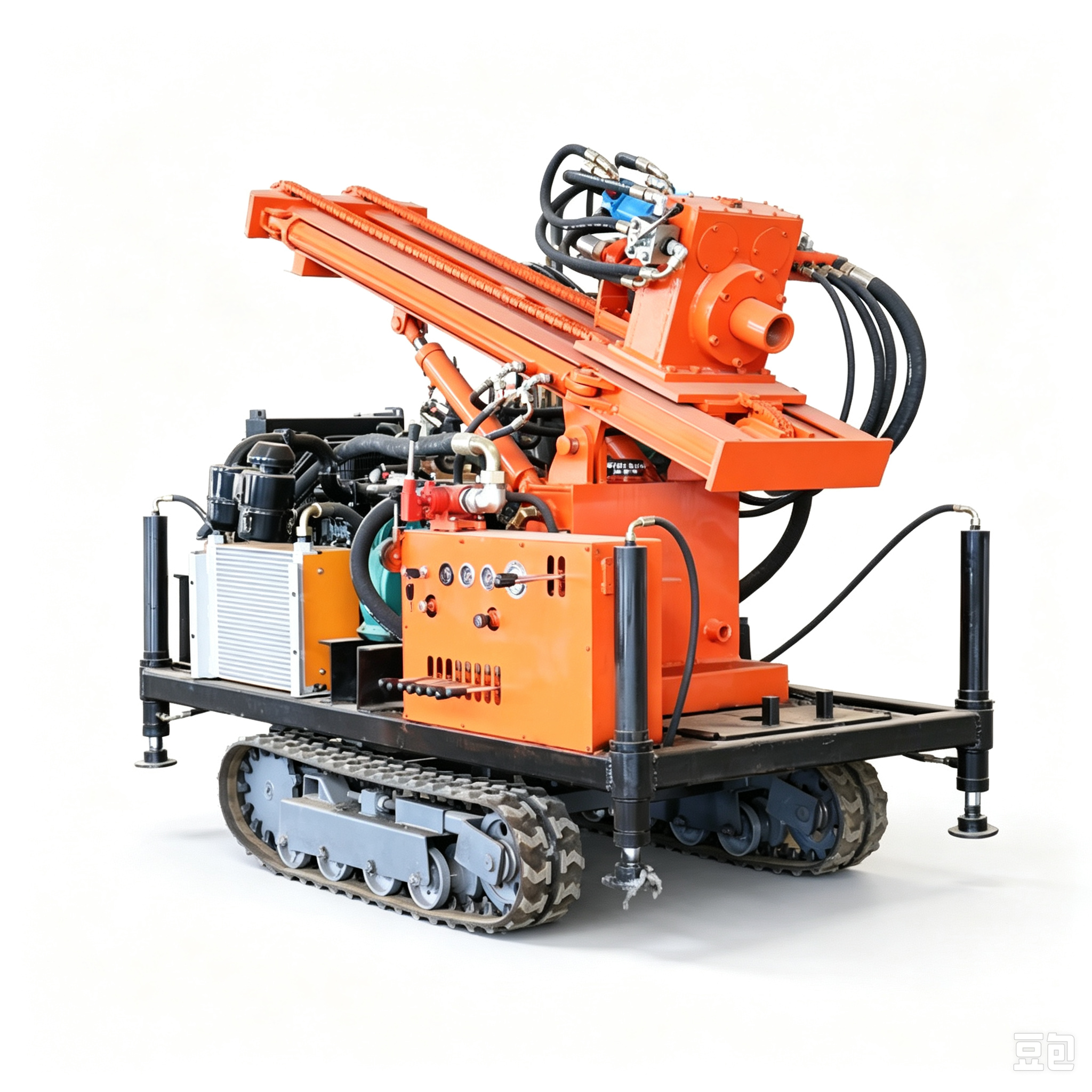

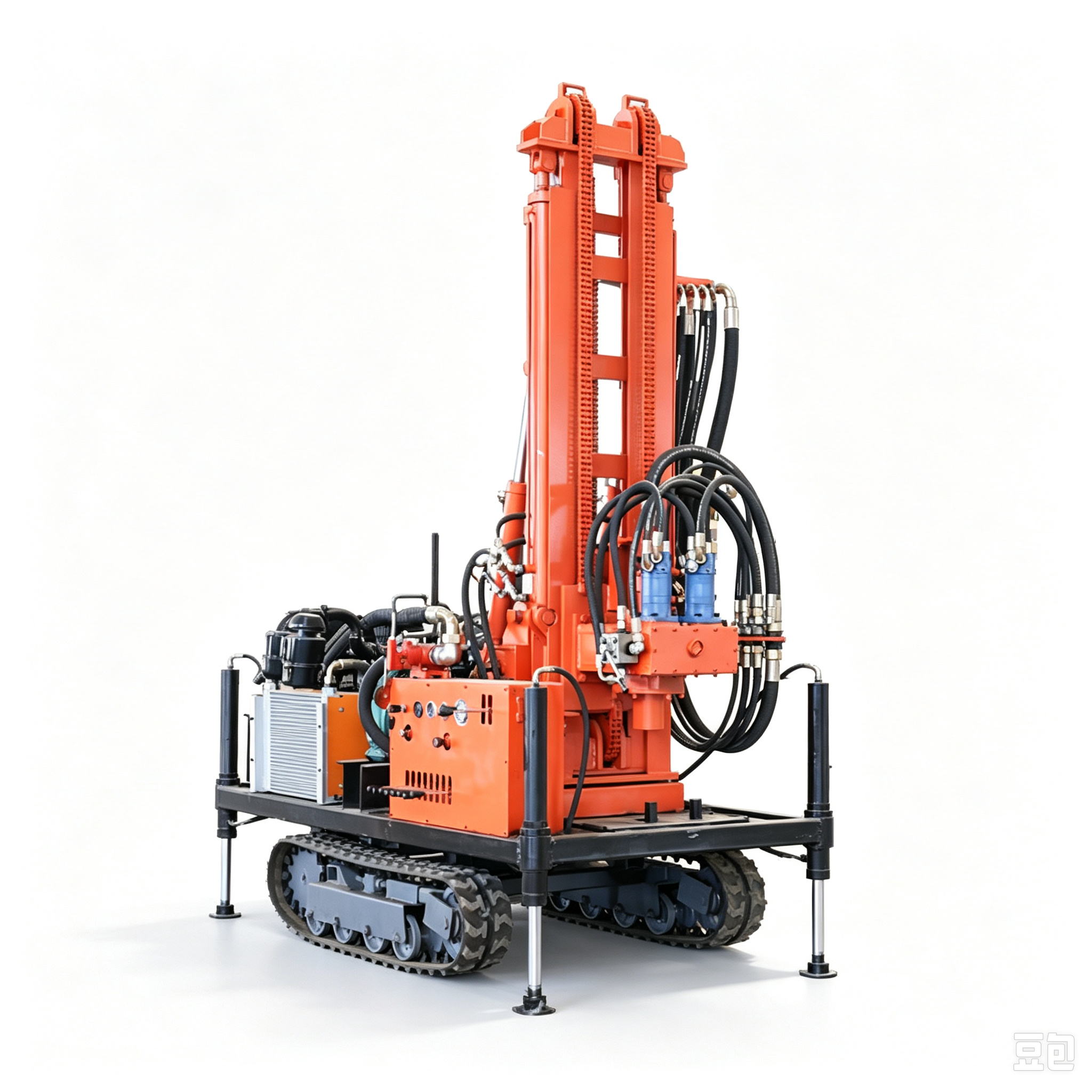

RLD-SM200 - Main View
RLD-SM200 hydraulic water well drilling rig with 200m drilling depth, 42kW diesel engine and 325mm maximum hole diameter. Suitable for agricultural wells, groundwater projects and engineering drilling applications.
Directly supplied by Shandong Relied Heavy Industry Co., Ltd. in Jining, China. This model supports export orders, OEM/ODM discussion, and practical configuration matching based on real working conditions.
RLD-SM200 hydraulic water well drilling rig with 200m drilling depth, 42kW diesel engine and 325mm maximum hole diameter. Suitable for agricultural wells, groundwater projects and engineering drilling applications. This model is supplied for international buyers who need practical drilling machinery backed by responsive factory communication and export support.
Core selling points from the actual model data and product documentation.
RLD-SM200 hydraulic water well drilling rig with 200m drilling depth, 42kW diesel engine and 325mm maximum hole diameter. Suitable for agricultural wells, groundwater projects and engineering drilling applications.
Max 200m Drilling Depth, Meets Deep Water Well Construction
Compatible With Multiple Drill Pipes, Max Hole Diameter 325mm
Equipped With Outrigger Support System, Stable Body Without Shaking During Operation
14Tons Large Lifting Force, More Stable And Efficient Drilling
Discuss drilling depth, hole diameter, mobility type, branding, and configuration requirements with our team.
Key model parameters extracted from product source materials. Final configuration can be discussed according to project needs.
| Main Parameters | |
|---|---|
| Model | RLD-SM200 |
| Engine Type | 42KW diesel engine |
| Torque | 4000NM-5000NM |
| Speed | 80-200 rpm |
| Maximum Hole Depth | 200 m |
| Maximum Hole Diameter | 325mm |
| Lifting Force | 14 tons |
| Diameter Of Drill Pipe | 60/76/89 |
| Drill Pipe | 2m |
| Maximum Stroke | 2.4m |
| Mud Pump | BW160 |
| Size(L*W*H)(mm) | 2300*1200*1700 |
| Note | The Engine,Tower, Outriggers and Chassis can all be customized, and can be equipped with Single Wheels, Double Wheels, Tracks or Small Tracks to control walking. |
Send us your drilling application, target depth, working ground condition, and destination market. We will help recommend a suitable model and configuration.
Typical project scenarios where this model can be discussed and supplied for international buyers.
Used for deeper household, farm, and community water well projects.
Send Sourcing Requirements
Suitable for local contractors who need flexible trailer or chassis configurations.
Send Sourcing Requirements
Can be matched with different drill pipe sizes and mud support depending on ground conditions.
Send Sourcing Requirements
A practical model family for buyers targeting general-purpose water well demand.
Send Sourcing RequirementsReal product and factory images related to this model.
Real scene photos help buyers review machine setup, working conditions and field presentation before inquiry confirmation.

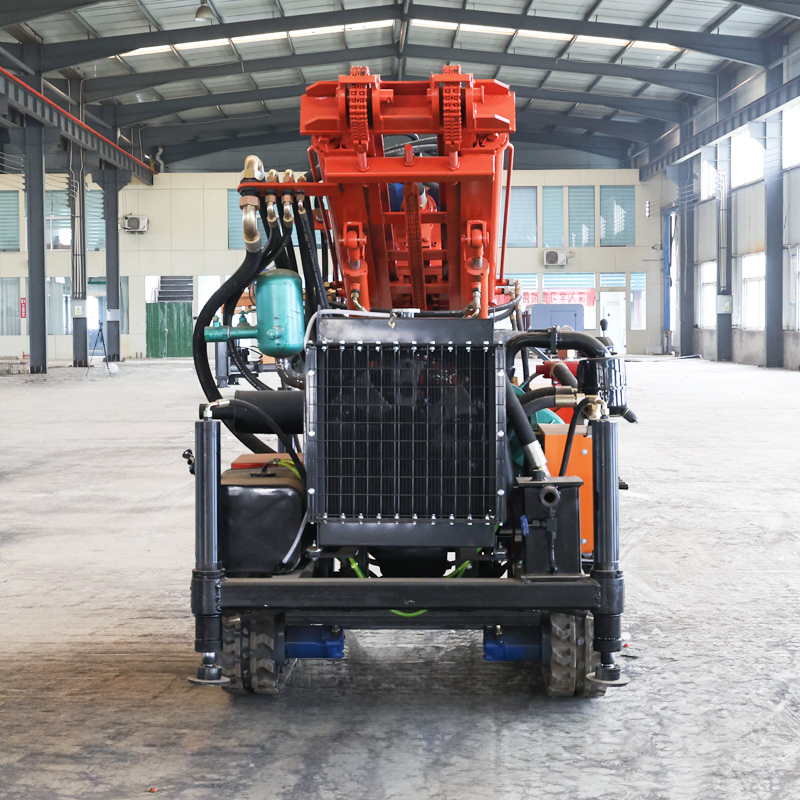

Scene 1

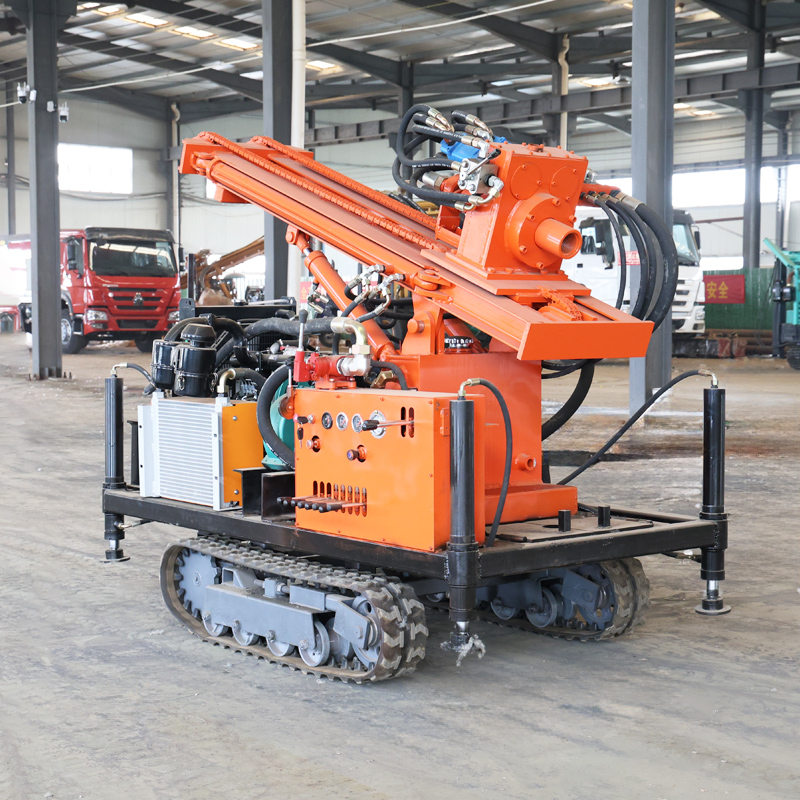

Scene 2

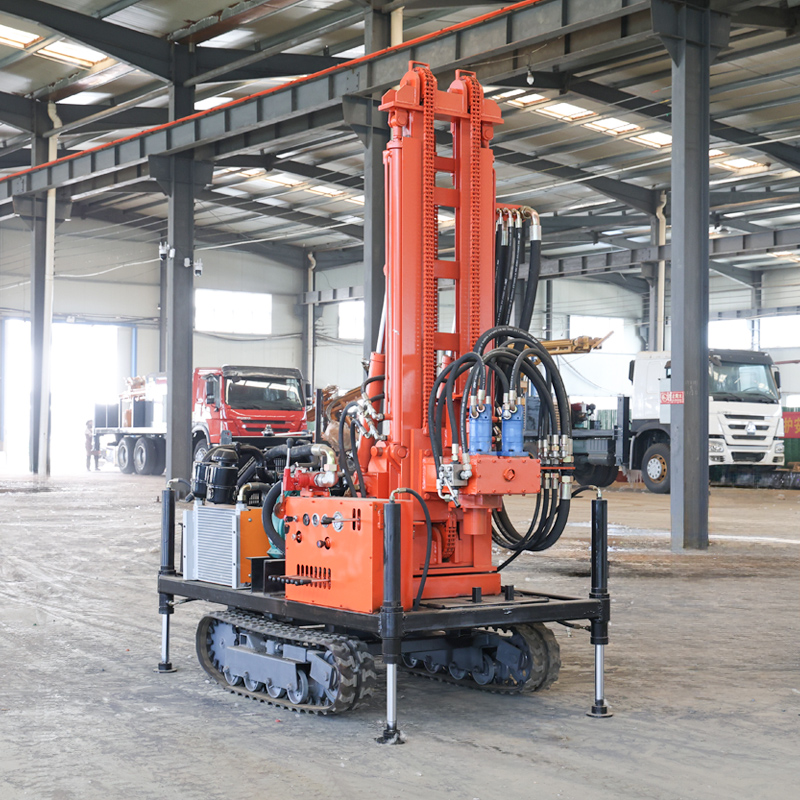

Scene 3

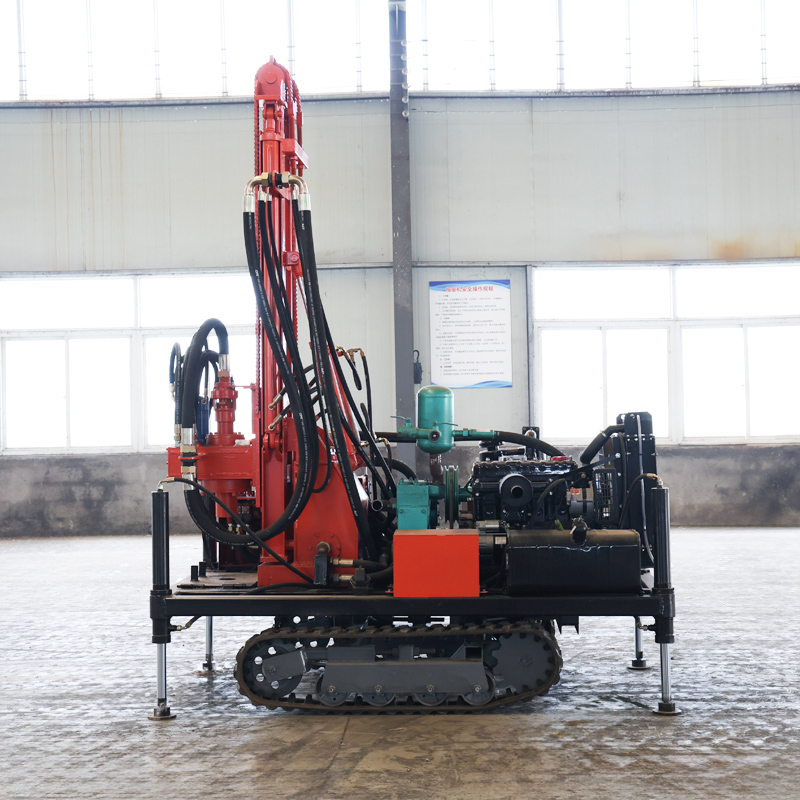

Scene 4
Close-up product detail photos help buyers review components, workmanship and structure more clearly.

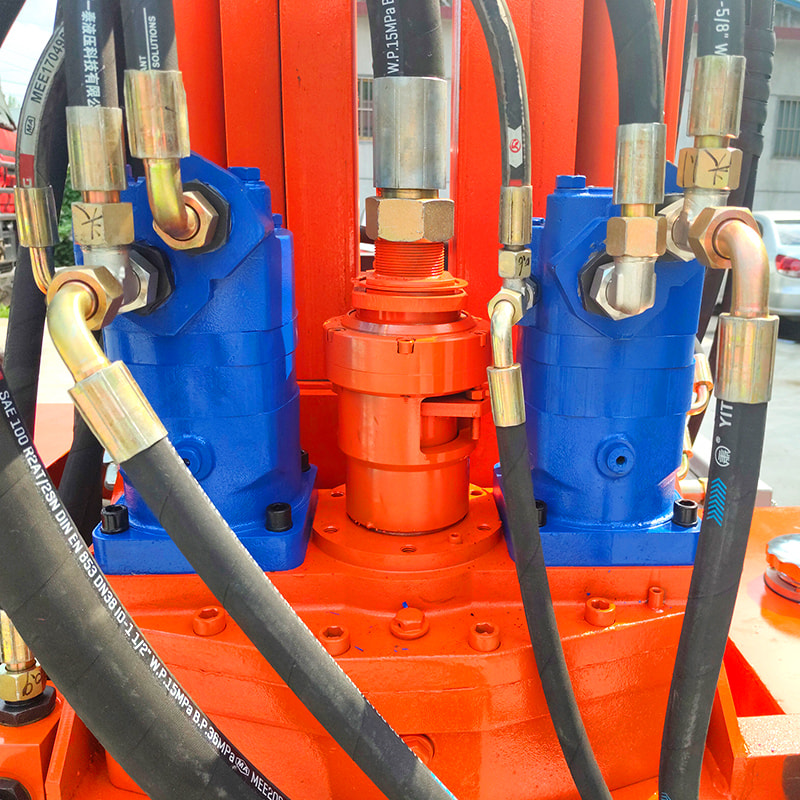

Detail 1

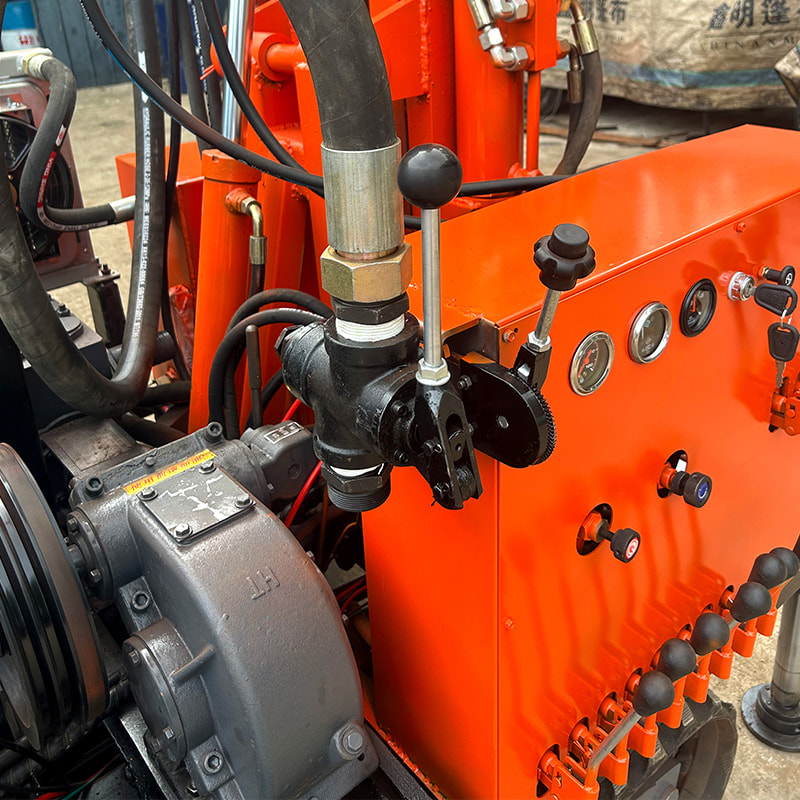

Detail 2

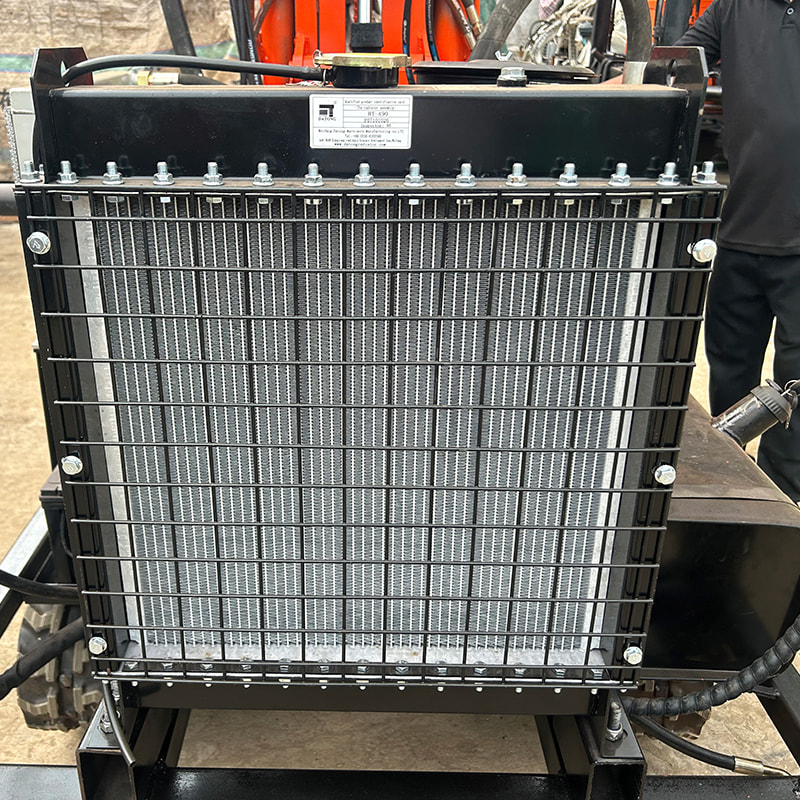

Detail 3

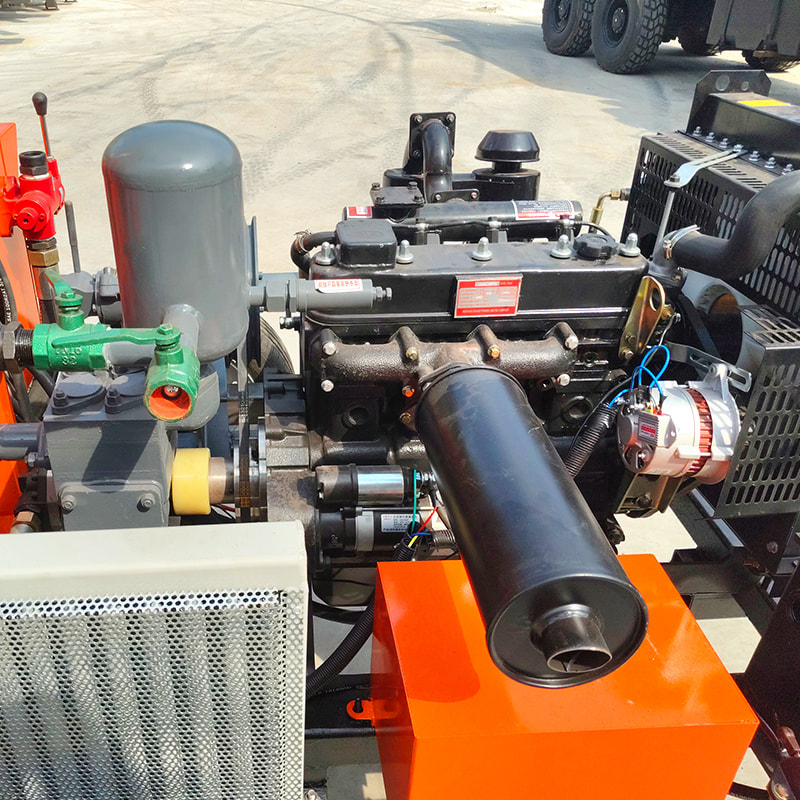

Detail 4
Other models from the same product family that may fit different drilling depth or application requirements.
Providing direct trade support, container planning, and custom configurations for professional machinery buyers.
Discuss structural spare parts kits, special wholesale pricing models, and regional stocking options.
Request dimensional maps, hydraulic schematics, and performance curves to assist your bid submissions.
We supply accurate packing lists, commercial invoicing records, and ocean container tracking details.
Collaborate on specialized winch setups, custom colorways, and fleet-aligned brand markings.
Review practical answers about model selection, customization, certificates and export support.
Our tracked rig is engineered primarily for water well drilling, geological survey exploration, and retaining slope anchor support. Final drilling depth capabilities vary according to structural ground strata, drill bits used, and engine specifications.
Yes. Our sales team can provide available product specifications, configuration details and supporting documents according to the selected model.
Yes. We can discuss branding, color, label, power configuration and packaging requirements according to product type and order quantity.
CE support is available for verified product categories. Please provide your target model and market requirements, and our team will confirm available certificate details.
Yes. Based on your drilling application, required depth, hole diameter and ground condition, our team can recommend a suitable model and configuration.
Please provide product model, quantity, application, required parameters, destination country or port, and any OEM/ODM requirements.
Share your drilling depth, hole diameter, application, quantity, destination country and OEM/ODM needs. Our team will recommend a suitable model and quotation.
