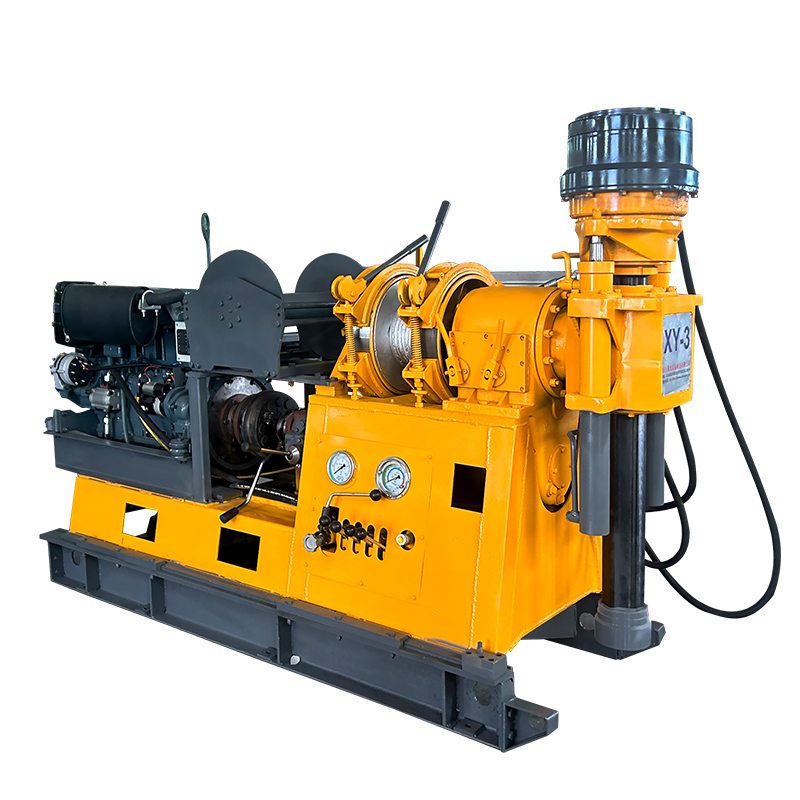

RLD-XY-3 - Main View
The drilling rig adopts the latest MW525automobile gearbox assembly, with 10forward gears and 2reverse gears. The speed of each gear is reasonably designed to meet the requirements of different drilling processes
Directly supplied by Shandong Relied Heavy Industry Co., Ltd. in Jining, China. This model supports export orders, OEM/ODM discussion, and practical configuration matching based on real working conditions.
The drilling rig adopts the latest MW525automobile gearbox assembly, with 10forward gears and 2reverse gears. The speed of each gear is reasonably designed to meet the requirements of different drilling processes This model is supplied for international buyers who need practical drilling machinery backed by responsive factory communication and export support.
Core selling points from the actual model data and product documentation.
The drilling rig adopts the latest MW525automobile gearbox assembly, with 10forward gears and 2reverse gears. The speed of each gear is reasonably designed to meet the requirements of different drilling processes
The drilling rig adopts the latest MW525automobile gearbox assembly, with 10forward gears and 2reverse gears. The speed of each gear is reasonably designed to meet the requirements of different drilling processes
The drilling rig has a large output torque and strong bearing capacity, which is convenient for handling various underground accidents. The mechanical transmission structure is compact, the vertical shaft through hole diameter is 96mm, the support distance is large, and the drilling rig has good rigidity
The hydraulic system realizes the controllable feed pressure and speed to meet the drilling needs of various different formations. At the same time, it is equipped with a bottom hole pressure indicator to facilitate the grasp of the situation in the hole
The drilling rig is small in size, light in weight, good in detachability, reasonable in layout, flexible and reliable in operation, and easy to maintain
Discuss drilling depth, hole diameter, mobility type, branding, and configuration requirements with our team.
Key model parameters extracted from product source materials. Final configuration can be discussed according to project needs.
| Main Parameters | |
|---|---|
| Rig Parameter | Model / RLD-XY-3 |
| Drilling Depth(m) | 600 |
| Open Hole Dia.(mm) | 325 |
| End Hole Dia.(mm) | 75 |
| Drill Angle(°) | 90-75 |
| Matching Power (KW) | Yunnei / 42 |
| Weight Without Power (kg) | 1800 |
| Dimension (m) | 2.6*0.9*1.75 |
| Spindle | Speed (r / min) / 32-1057 |
| Stroke(mm) | 600 |
| Winch | Single rope lift force(kg) / 3000 |
| Lifting Speed Head(m / Min) | 0.3-1.9 |
| Rope Dia.(mm) | Φ12.5 |
| Rope Capacity(m) | 65 |
Send us your drilling application, target depth, working ground condition, and destination market. We will help recommend a suitable model and configuration.
Typical project scenarios where this model can be discussed and supplied for international buyers.
Suitable for investigation drilling, sampling, and light exploration work.
Send Sourcing Requirements
Useful for survey drilling and foundation-related site checks.
Send Sourcing Requirements
Designed for core recovery and project preparation work in different strata.
Send Sourcing Requirements
Compact structure helps with transport and relocation between job locations.
Send Sourcing RequirementsReal product and factory images related to this model.
Real scene photos help buyers review machine setup, working conditions and field presentation before inquiry confirmation.
Scene 1
Scene 2
Scene 3
Close-up product detail photos help buyers review components, workmanship and structure more clearly.
Detail 1
Detail 2
Detail 3
Other models from the same product family that may fit different drilling depth or application requirements.
Providing direct trade support, container planning, and custom configurations for professional machinery buyers.
Discuss structural spare parts kits, special wholesale pricing models, and regional stocking options.
Request dimensional maps, hydraulic schematics, and performance curves to assist your bid submissions.
We supply accurate packing lists, commercial invoicing records, and ocean container tracking details.
Collaborate on specialized winch setups, custom colorways, and fleet-aligned brand markings.
Review practical answers about model selection, customization, certificates and export support.
Our tracked rig is engineered primarily for water well drilling, geological survey exploration, and retaining slope anchor support. Final drilling depth capabilities vary according to structural ground strata, drill bits used, and engine specifications.
Yes. Our sales team can provide available product specifications, configuration details and supporting documents according to the selected model.
Yes. We can discuss branding, color, label, power configuration and packaging requirements according to product type and order quantity.
CE support is available for verified product categories. Please provide your target model and market requirements, and our team will confirm available certificate details.
Yes. Based on your drilling application, required depth, hole diameter and ground condition, our team can recommend a suitable model and configuration.
Please provide product model, quantity, application, required parameters, destination country or port, and any OEM/ODM requirements.
Share your drilling depth, hole diameter, application, quantity, destination country and OEM/ODM needs. Our team will recommend a suitable model and quotation.
